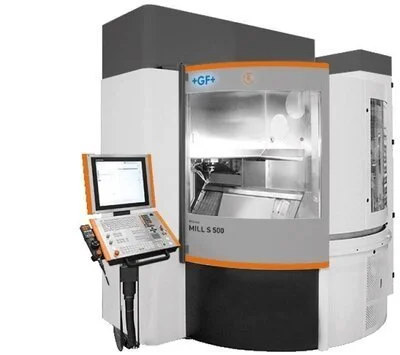

New GF Mikron MILL S 500 | Vertical Machining Centers
ConditionNew
New
The machines from the Mikron MILL S series are real high speed machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Rapid traverse X,Y,Z
61 m/min
2,401 in/min
Working spindle (40% ED, S6)
30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Work table
590 x 450 mm
23.23 x 17.72 in
Max. load (incl. pallet)
200 kg
441 lbs
Tool magazine
18/36/68/168 (HSK-E40)
Machine weight
6,800 kg
14,991 lbs
Control unit
TNC 640 (Heidenhain)
