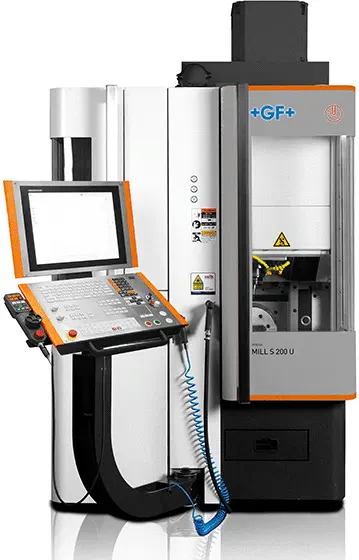

New GF Mikron MILL S 200 U | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New
The MILL S 200 U is a real high speed machining center - extremely fast and precise. For optimal dynamical stiffness and absorption of machining and dynamically generated mass energy, the axis design is extremely rigid and powerful. A polymer concrete base is supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct motor drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways of impressive size. The result is outstanding product quality and short processing times and best return on invested money.
Therefore the machines are highly appreciated in serial production of a variety of precision parts.
Travel X,Y,Z
160 x 160 x 200 mm
6.30 x 6.30 x 7.87 in
Swiveling range
+30°
-120°
Rotary range
n x 360°
Rapid traverse X,Y,Z
42 m/min
1,653 in/min
Rapid traverse: Swiveling / Rotating
150 / 220 rpm
Working spindle (40% ED, S6)
50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm
Pallet/clamping surface
GPS 120
ITS 148
Macro Magnum 156
Macro 54
Max. load (incl. pallet)
8 kg
17.64 lbs
Tool magazine
30/60/150 (HSK-E32)
Machine weight
3,600 kg
7,936 lbs
Control unit
TNC 640 (Heidenhain)
