New GF Mikron MILL P 800 U | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New

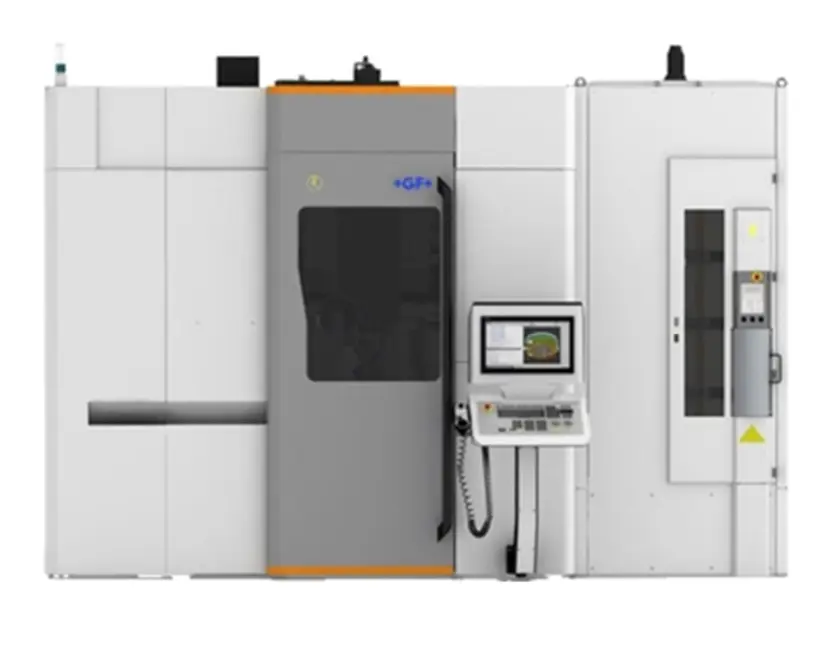

The Mikron MILL P 800 U is a very robust, stable and accurate machining center in a gantry-type design. This five-Axis Milling solution is designed for high-performance machining applications. For 100 percent simultaneous operation, the machine has water-cooled direct drives in the rotary and swiveling axes, which can be clamped to reach even a higher stiffness during roughing. Workpiece access is made easy by the big door and the short distance to the work table.
Thanks to its unique concept and its modularity, the machine ensures precise machining applications in both single item and fast, productive serial production.
Travel X, Y, Z
800 x 600 x 500 mm
Feed rate X/Y/Z
45 (61 dynamic version) m/min
Swivelling range
+91/-121°
Rotary range
n x 360 rpm
Feed rate swivel
25 (50 dynamic version) rpm
Feed rate rotary
35 (60 dynamic version) rpm
Working table
T-slot radial / parallel Ø630 mm
T-slot radial / parallel Ø500 mm
System 3R Delphin
400 x 400 / 500 x 500 / 500 x 630 mm
Table load 500 / 1000 kg
Working spindle
20'000 rpm - HSK-A63
28'000 rpm - HSK-A63
Tool magazine
30 / 60 / Tool Tower 120 / 170 / 215 pockets
Footprint
Automation Pallet magazine 7x (500x630)
Pallet magazine 9x (500x500)
Pallet magazine 12x (400x400)
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
MILL Turn Option
