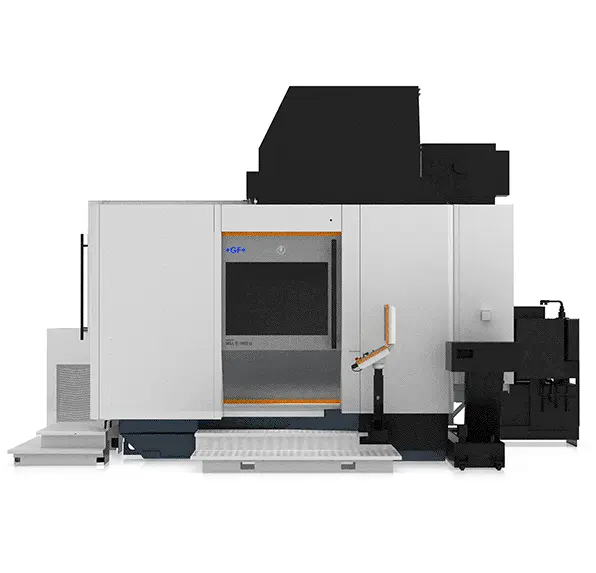

New GF Mikron MILL E 1900 U | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New
Highlights
Space saving
Smallest footprint in its class.
Perfect access
Short distance between operator and work table.
100% simultaneous milling
Torque motors in the rotary and swivel axes.
Long life components
With easy service and maintenance access.
Extended tool lifetime
Due of high dynamic ax motions, clamping in B and C axes and a very stable machine base.
High precision
The rigid and the thermally encapsulated portal as well scraped guideways and components are the base for high precision machining
High dynamic
Due of direct drives in the B and C axes and reduced mass in the moving parts
Travel X, Y, Z
1880 x 1400 x 930 mm
Feed rate X/Y/Z
15 / 41 (S6) m/min
Swivelling range
+20/-120° (HSK-A63)
+20/-110° (HSK-A100)
Rotary range
n x 360°
Feed rate swivel
11 (S6) rpm
20 (S6) rpm
Feed rate rotary
30 rpm
Working table
T-slot table parallel Ø1600 mm
Pallet - T-slot parallel Ø1250(x1000) mm
Table load 4000 kg
Working spindle
10'000 rpm - HSK-A100
15'000 / 24'000 rpm - HSK-A63
Tool magazine
HSK-A63: 45 / Tower 116 / 212 / 336 pockets
HSK-A100: 30 / Tower 90 / 130 / 175 pockets
Automation
Pallet magazine 3 pallets Ø1250(x1000)
Others on request
