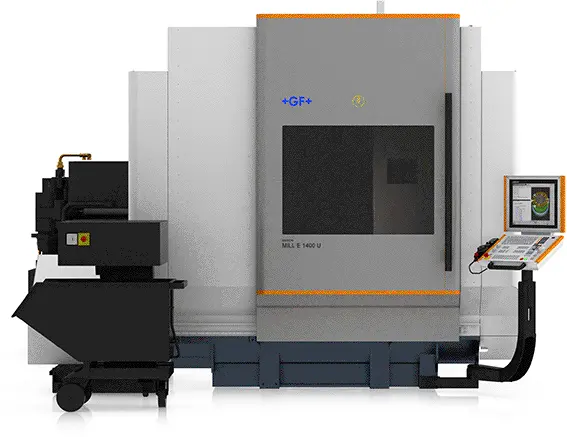

The universal machining center is based on a cross-bed type design. The Y- and Z- axis travel is realized by moving those structural components carrying the cutting tool, while the X-axis is moving the work piece.
The machine base design uses a generously sized, vibration absorbing casting (GG25). All structural elements have been optimized by FEM. The Y-axis movement is realized through a frame shaped traveling column, which further carries the spindle slide moving in vertical direction (Z-axis). This design eliminates any superimposed movements. This together with the maximized distance between the profiled linear guide ways and the scraped machine bed components, a significantly increases of the accuracy of the machine is resulting. Structure and components of the machine have been designed to achieve extreme stiffness and optimum dynamics.
The tilting head makes the treatment with head inclinations from +16° to-120° possible. Thanks to the direct propelled rotary and tilting axes the MILL E 1400 U offers ideal conditions for highest achievements at the work piece also by 5 axis simultaneously. For 3-axis working or working in positioning mode, the rotary and tilt axis can be clamped hydraulically in any position. The machine set up is realized by leveling the three feet. Four additional feet are used to further support the structure. No specific foundation is required.
Travel X, Y, Z
1380 x 1150 x 900 mm
Feed rate X/Y/Z
15 / 32 (S6) m/min
Swivelling range
+16/-120° (HSK-63)
+16/-110° (HSK-100)
Rotary range
n x 360°
Feed rate swivel
11 rpm
20 (S6) rpm
Feed rate rotary
40 rpm
Working table
T-slot table parallel Ø1100 mm
Pallet - T-slot parallel Ø1000(x840) mm
Table load
for T-slot table Ø1100 - 1600 kg
for pallets Ø1000(x840) 1000 kg / 1500 kg (crane loading)
for pallet magazine 3000 kg(3x pallets)
Working spindle
10'000 rpm - HSK-A100
15'000 / 24'000 rpm - HSK-A63
Tool magazine
HSK-A63: 30 / 46 / 92 / Tower 116 / 212 / 336 pockets
HSK-A/T100: 32 / 64 / Tower 90 / 130 / 175 pockets
Automation
Pallet magazine 3 pallets Ø1000(x840)
Others on request
