New GF Microlution Tube Cutter (MLTC) | Laser Cutters
ConditionNew
New

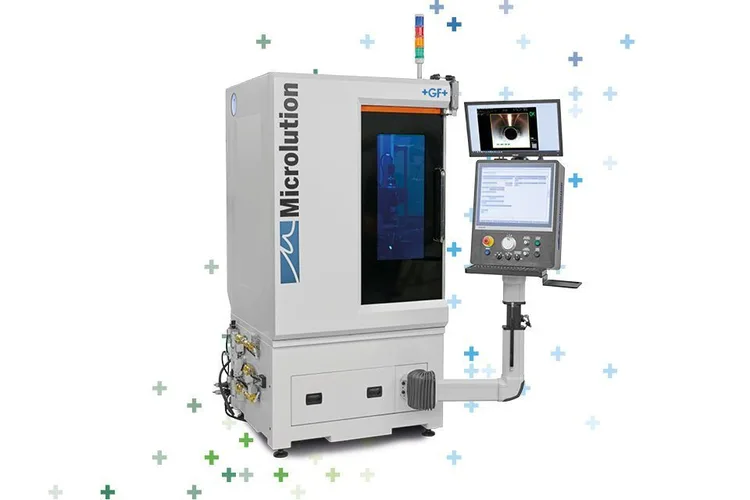

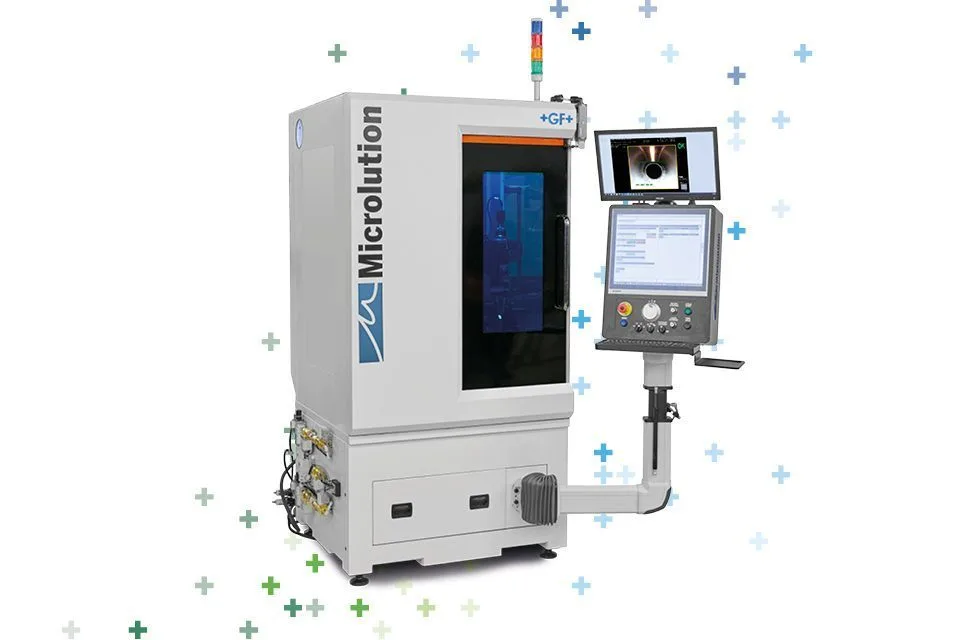

The Microlution Tube Cutting (MLTC) Laser micromachining solution is designed for high-speed, high accuracy laser drilling and cutting of small, high-precision features of thin-walled tubing and targets most cutting edge micro-scale tube cutting applications. With the MLTC you can respond to the miniaturization trend and deliver precision parts with higher performance, productivity, and flexibility.
INCLUDED FEATURES
Microlution MLTC
One Microlution MLTC ultrafast laser turning workstation including:
• Precision ground natural granite base
• Heavy duty welded construction with full sheet metal enclosure
• High acceleration ironless linear motors
• Super-precision linear ball guide bearings
• Absolute linear scales
• Class 1 laser enclosure with no direct line of sight to the laser
• High accuracy spindle and 3C precision collet capabilities (collets not included)
• G-code programming
• Internal debris management system
• Integrated nanosecond laser source
• Integrated laser cutting head
• Integrated coaxial camera
• Integrated on-end camera
• 1 year machine warranty
Machine dimensions*
1600 x 2000 x 2000 mm
62.992 x 78.74 x 78.74 in
Machine weight
2300 kg
5070.58 lbs
Travel paths of axes X, Y, Z
280 x 20 x 24 mm
11.024 x 0.787 x 0.945 in in
Spindle speed
1000 rpm
Laser sources
40 w
* Width x depth x height
