Innovative texturing. Accelerated productivity.
The LASER S series is the most advanced system for mold & die Laser texturing applications requiring the highest levels of quality and productivity in key industrial segments, such as Automotive, Packaging, Consumer Goods and Consumer Electronics. The LASER S 1000 U and LASER S 1200 are full digital, all-in-one Laser texturing solutions designed to achieve quality freeform 3D texturing without compromising your productivity. Our unique All-In-One dedicated software package provides you with the necessary tools to perform all kinds of texturing, structuring and engraving jobs, from the office to the shop floor, from day one.

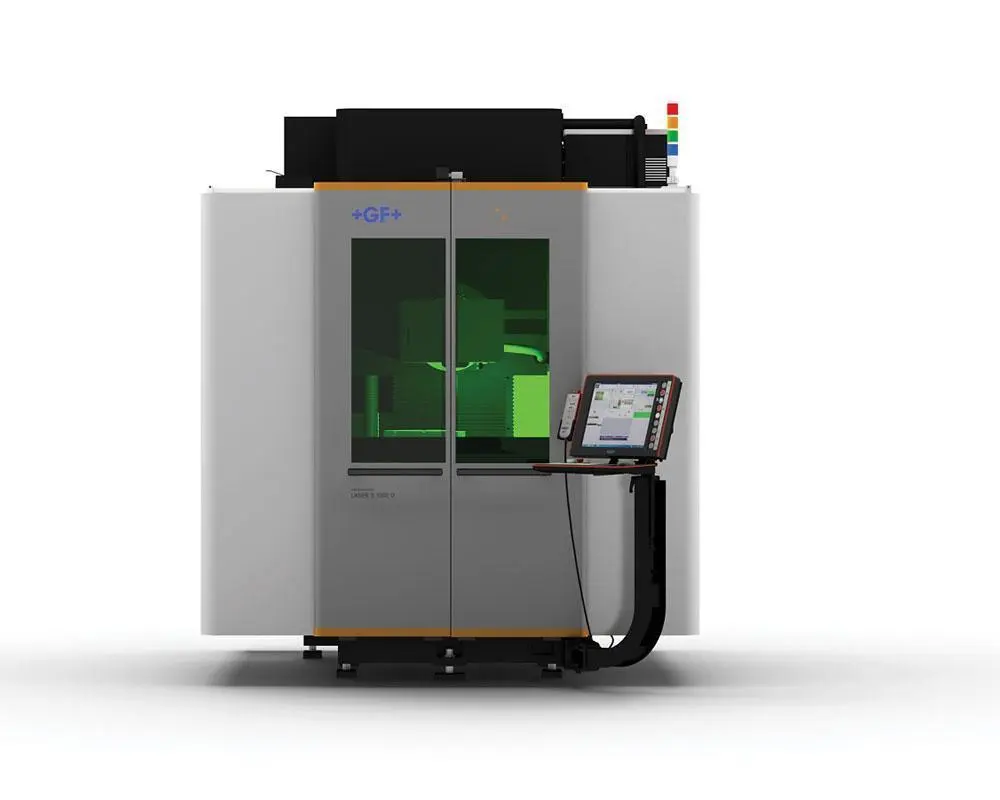

LASER S 1000 U highlights :
- Configurable with a choice of laser sources:
● Nanosecond Laser sources: 50W / 100W Infrared, with fixed pulse duration or with the FlexipulseTM
functionality.
● Femtosecond: 20W GF Femto FlexipulseTM Infrared delivered by fiber.
- A Dual Laser configuration allows for the use of up to two Laser sources in a single machine, increasing the flexibility of this equipment:
● One Femto and one nanosecond Laser source.
● Two nanosecond Laser sources with our patented Twin nano Laser option.
- Thermostabilized laser head.
- High dynamic 3D scanner (2D + Z-shifter).
- Marking field up to 133 x 133 mm with F255 lens.
- Automatic lens calibration.
- High productivity and quality thanks to SMARTSCAN-3D and SMARTPATCHTM.
- The machine is automation-ready, left or right loading for maximum flexibility.
- Machine travel axes X, Y, Z: 1000 x 550 x 880 mm.
- rConnect for remote service (TüviT Trusted Product Certificate).
Machine dimensions*
2240 x 2678 x 2645 mm
88.2 x 105.4 x 104.1 in
Space required for installation
3400 x 4000 mm
133.9 x 157.5 in
Machine weight
6500 kg
14330 lbs
Focal length
FSTC100/FS163/FS255 Type
Nanosecond pulsed Laser
50 W Flexipulse/100 W Flexipulse
Ultrashort pulsed Laser
20 W Femto Flexipulse Infrared FD
Electrical and pneumatic supply
Nominal power
8 kVA
Air pressure
6 bar
Required air output flow
300 l/min
Printing specifications
X, Y, Z travels
1000 x 550 x 880 mm
39.4 x 21.7 x 34.6 in
Travel Laser head: A
180 °
Travel machine table: B
720 °
Table dimensions
380 mm
15 in
Distance floor to table
925 mm
36.4 in
Working area
Max workpiece dimensions
Ø 660 ** mm
Ø 26 ** in
Max workpiece machining height
550 ** mm
21.7 ** in
Max workpiece weight five axis
150 kg
330 lbs
Full five-axis dimensions
Ø 510 x 480 ** mm
Ø 20 x 18.9 ** in
* Width x depth x height ** with FS163 *** with FS255 **** with FS340
