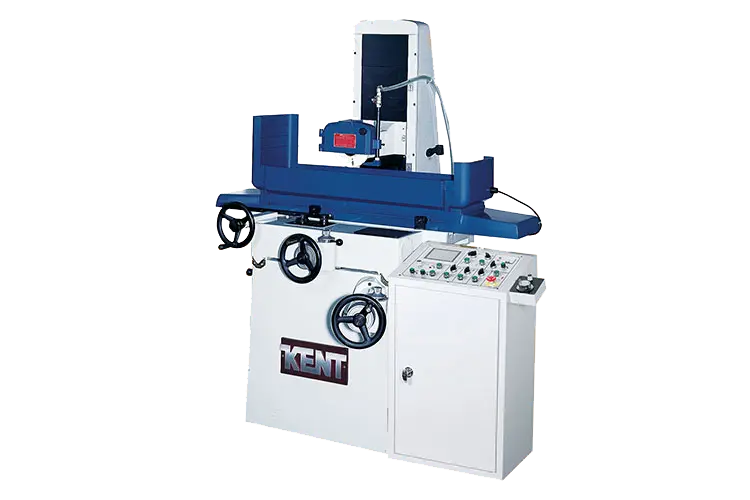

KENT KGS-250WM1
ConditionNew
New
Features & Capability
Downfeed Programmable
Longitudinal on ball bearing table ways
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Overhead manual wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Capacity
Overall table working area - inch 8 x 18
Longitudinal table travel - inch 21.25
Crossfeed table travel - inch 10.5
Distance spindle center to table - inch 18.6
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - inch 8 x 3/4 x 11/4
Spindle speed - RPM 3480
Vertical Movement
Vertical on MPG / Handwheel 1 gra - inch 0.0005
Vertical on MPG / Handwheel 1 rev - inch 0.1
Auto downfeed increment - inch 0.0001-0.001
Motor
Spindle motor - HP 2 (3 OPT)
Dimension & Weight
Machine height - inch 70
Floor space - inch 81 x 57
Net weight - LB 2860
Gross weight - LB 3300
Standard Equipment
*Downfeed Programmable
Coolant System with Magnetic Seperator
Front Table Splash Guard
Three Axis Automatic
Hydraulic Chiller Fan
Electro Magnetic Chuck
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 180x13x31.75mm
Tool Set
Machine-to-adjust-sizing-block
Complete Documentation
