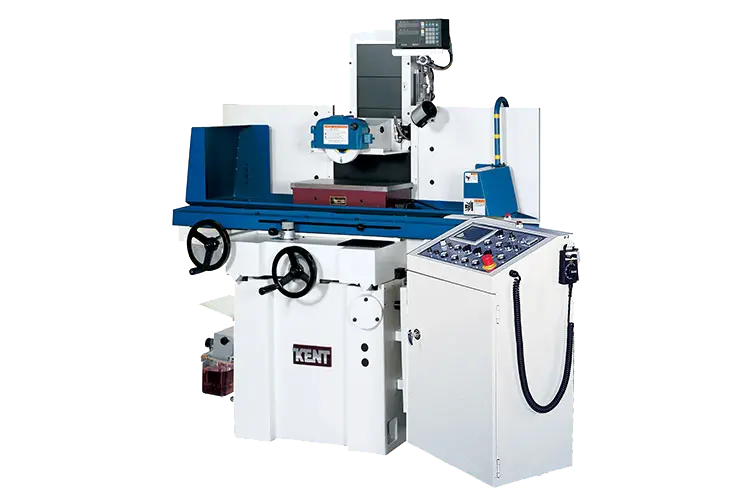

KENT 1020WM1 (Downfeed Programmable)
ConditionNew
New
New KENT KGS-1020WM1 Reciprocating Surface Grinder. Table size: 39.75" x 15.75", Power: 5 hp, Grinding wheel: 1.5" width, 12" diameter.
Capacity
Overall table working area - INCH 10 x 20
Longitudinal table travel - INCH 23.25
Crossfeed table travel - INCH 10.8
Distance spindle center to table - 19.25
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - INCH 8 x 1 x 11/4
Spindle speed - RPM 3480
Vertical Movement
Vertical on MPG / Handwheel 1 gra - INCH 0.0005
Vertical on MPG / Handwheel 1 rev - INCH 0.1
Auto downfeed increment - INCH - 0.0001-0.001
Motor
Spindle motor - HP 3
Dimension & Weight
Machine height - INCH 70
Floor space - INCH 94 x 71
Net weight - LB 3150
Gross weight - LB 3590
KGS-1020WM1 Series - Features and Capabilities:
*Downfeed Programmable
- Longitudinal on V-flat scraped guideways
- Saddle traveling crossfeed
- Motorized rapid elevation
- Spindle motor frequency inverter *Optional
- Hydraulic oil chiller *Optional
- Full enclosure *Optional
- Overhead hydraulic wheel dresser
- Variable spindle speed *Optional
- Surface grinding
- Plunge grinding
Other models and versions available:
KGS-1020WM1 (Downfeed Programmable)
KGS-1020WM2 (Downfeed and Crossfeed Programmable)
KGS-1020WMA1 (Downfeed Programmable + Auto Dresser)
KGS-1020WMA2 (Downfeed and Crossfeed Programmable + Auto Dresser)
