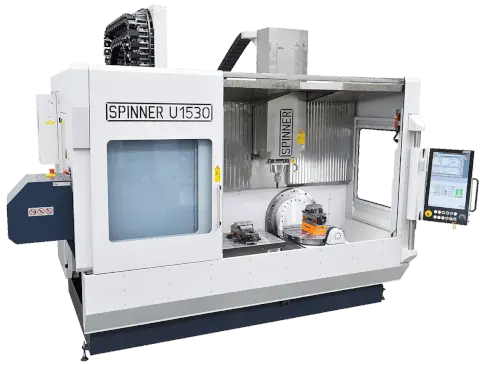

Our U5-1530 Advanced series is a 5-axis Vertical Machining Center for high performance 5-axis simultaneous machining with spindle speeds up to 20,000 rpm. This machine has an integrated 2-axis trunnion table that revolves around the Y-axis which significantly reduces interference and allows the tool to reach the part without the need for longer tools. The machine offers 5-sided and full 5-axis simultaneous machining for high accuracy applications such as mold-making. An optional high-performance trunnion table utilizes a hydraulic counterweight and contains a 3.9 in (100 mm) bore in the table center to accommodate hydraulic or pneumatic feeds for fixture clamping. The traveling column design separates the machining environment from the axis drive and servo system so material such as plastic, graphite, etc. can be machined and contained without contaminating the machine. The U5-630 can handle heavy workpieces and can be configured with automation for production applications.
Feature Highlights:
● Compact design
● Large fixed table in the working area on the left (21.25” x 36.25”) for prep work or 4-axis work on long workpieces using a tailstock
● Direct measuring scales in X/Y/Z axis
● SIEMENS 840D-SL or HEIDENHAIN TNC640 height-adjustable control system with 19" multi-touch screen
● SPINNER High-precision spindle
● 5-axis simultaneous and 5-sided machining
● Solid FEM designed with highly ribbed casting
● Heavy ribbed traveling column design
● SPINNER High-precision spindle, liquid cooled, direct drive, HSK63
● All linear axes with rigid high-precision guides
● Large panoramic windows
● Wide enclosure opening for access to the work area
● Top of the machine is fully enclosed
● High spindle speeds
● Large tool magazine capacity
● Ergonomic operating panel adjustable in height and angle
● Integrated swing/tilt-table in machine body
● Workspace lights
● Outstanding chip management
● Technical design according to CE standards in accordance with the European Union with corresponding CE certificate
Standard Equipment
● 2-axis (B/C) precision tilting rotary trunnion table integrated into the machine bed with a support bearing. Removable table ring that reduces the table diameter to 19.68 in (500 mm) increasing clearance
● Direct measuring system in X, Y, Z axis
● Direct measuring system in the B and C axis
● Hydraulic brake for the B and C axis
● 2-port rotary union in the center of the C-axis for passing compressed air or hydraulics lines for fixture clamping
● Signal lamp
● Universal chip conveyor with coolant tray, enlarged L-shaped coolant tank with approximately 200 liters capacity. Includes a centrifugal pump rated at 83l/min at 8 bar.
● 1,015 psi (70 bar) high pressure coolant through the spindle with paper band filter
● Fine filter cartridges in the main coolant supply line to the machine. Switchable in operation with two 100µm cartridge filter inserts included. Electrical contamination monitoring
● Compressed air at the headstock
● Spinner-Blum wireless part probing system
● Blum LC50 laser tool probing system with calibration mandrel - HSK63
● Calibration mandrel for laser with tool mount for establishing centerlines of rotation
● Preparation for Indunorm Palletizing System consisting of:
○ Communication interface to pallet changer
○ Robot access door on the the machine
○ Pneumatic valves for:
■ Clamping/unclamping the clamping system
■ Blowing off the clamping system and checking the system
● Indunorm UL100 pallet changing system installed to the right side of the machine includes:
○ Storage of up to 6 pallets
○ Pallet outer dimensions of 400x400mm
○ Permissible total weight of pallet and workpiece: Max. 100kg
○ Loading and unloading of pallets via access door at the front of the pallet changer. Includes a protective housing and control system
○ Attention: Pallet changer must be anchored to the floor. Anchor kit not included and must be ordered separately
● Indunorm ZERO POINT CLAMPING SYSTEM, mounted on U5 rotary table
● Six pallets 400x400mm including coupling suitable for receiving workpieces and devices.
● Eyebolts for unloading with a crane (4 pcs)
