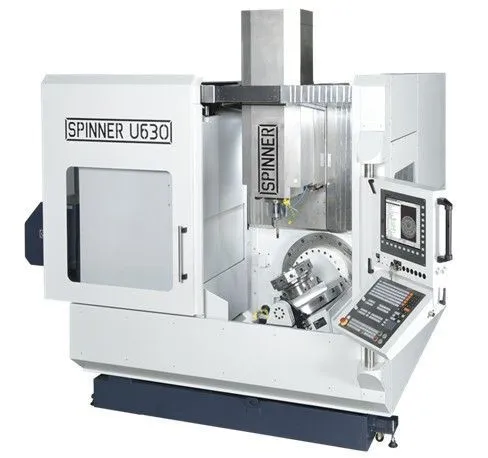

New SPINNER U5-630 COMPACT | Vertical Machining Centers (5-Axis or More)
ConditionNew
New
Our U5-630 Compact series is a 5-axis Vertical Machining Center for high performance 5-axis simultaneous machining with spindle speeds up to 15,000 rpm. This machine has an integrated 2-axis trunnion table that revolves around the Y-axis which significantly reduces interference and allows the tool to reach the part without the need for longer tools. The machine offers 5-sided and full 5-axis simultaneous machining for high accuracy applications such as mold-making. An optional high-performance trunnion table utilizes a hydraulic counterweight and contains a 3.9 in (100 mm) bore in the table center to accommodate hydraulic or pneumatic feeds for fixture clamping. The traveling column design separates the machining environment from the axis drive and servo system so material such as plastic, graphite, etc. can be machined and contained without contaminating the machine. The U5-630 can handle heavy workpieces and can be configured with automation for production applications.
Trunnion Table
Rotary Table Ø 25.6 in (650 mm) / Ø 19.7 in (500 mm) with outside ring removed
Load (max) 1,102 lbs (500 kg)
T-Slots 5 slots - 18 mm x H8 fit
Clamping Hydraulic
Travels
X 24.8 in (630 mm)
Y 20.9 in (530 mm)
Z 18.3 in (465 mm)
B Rotary -90° / +110°
C Rotary 360°
Feedrate
Rapid Traverse X 1,181 ipm (30 m/min)
Rapid Traverse Y 1,181 ipm (30 m/min)
Rapid Traverse Z 1,181 ipm (30 m/min)
Spindle
Speed (max) 15,000 rpm
Performance 20.1 hp (15 kW)
Torque 71.5 ft-lbs (97 Nm)
Tool Holder HSK63
Tool Magazine
Station Quantity 32
Tool Length (max) 11.8 in (300 mm)
Tool Diameter (max) 3 in (76 mm)
Tool Diameter (max) - Adj Pocket Empty 5.1 in (130 mm)
Tool Weight (max) 15.4 (7 kg)
Size & Electrical
Technical design according to CE standards.
Machine Dimensions 108.3 in (2750 mm) x 99.6 in (2530 mm) x 110.6 in (2810 mm)
Machine Weight 17,637 lbs (8,000 kg)
Operating Voltage 3 x 400V (+/-10%)
Main Frequency 60 Hz (+/- 2%)
Networking TN network (5-wire)
Standard Equipment
2-axis (B/C) tilting rotary trunnion table integrated into the machine bed with a support bearing
Direct measuring system in X, Y, Z axis
Direct measuring system in the B and C axis
Hydraulic brake for the B and C axis
2-port rotary union in the center of the C-axis for passing compressed air or hydraulics lines for fixture clamping
Signal lamp
Universal chip conveyor with coolant tray and 39.6 gallon (150 liter) tank with centrifugal pump rated at 22 gpm (83 l/min) at 116 psi (8 bar)
319 psi (22 bar) high pressure coolant through the spindle with paper band filter
Compressed air at the headstock
Compressed air through the spindle
Rinsin gun
Spinner-Blum wireless part probing system
Blum Infrared tool probing system mounted on the machine table
Preparation for mist collector unit
Ductwork for the mist collector
Standard documentation in English
Simplified 3D MODEL for working area of the machine
Post processor manual
Lifting rings for crane unloading, set consisting of 4 pcs.
Feature Highlights
Compact design
High precision
5-axis simultaneous and 5-sided machining
Solid FEM designed with highly ribbed casting
Heavy ribbed traveling column design
SPINNER High-precision spindle, liquid cooled, direct drive, HSK63
All linear axes with rigid high-precision guides
Large panoramic windows
Wide enclosure opening for access to the work area
Top of the machine is fully enclosed
High spindle speeds
Large tool magazine capacity
Ergonomic operating panel adjustable in height and angle
Integrated swing/tilt-table in machine body
Workspace lights
Outstanding chip management
Technical design according to CE standards in accordance with the European Union with corresponding CE certificate
