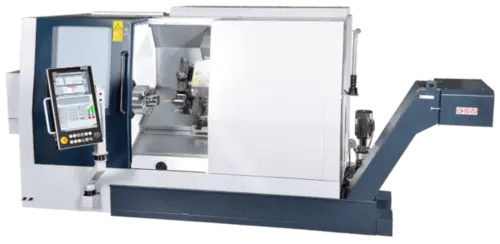

New SPINNER TC 800-85 | CNC Lathes
ConditionNew
New
Our TC800 is a performance universal lathe with
- High cutting performance with high torque
- Box-way sliding guideways useful for hard-turning applications and long lifetime of tools
- Most modern and dynamic built-in motor spindle (85mm) with water cooling
- Gear-box driven big bore spindle of 110mm for high torque applications
- Dynamic servo-turret with adjustable tool change speed by feed override
- Capable for chucks up to 500mm
- Available with Y-axis or subspindle
and is usually used for highly demanding workpieces from bar material or in chucking applications.
Our TC800 is a performance universal lathe with
- High cutting performance with high torque
- Box-way sliding guideways useful for hard-turning applications and long lifetime of tools
- Most modern and dynamic built-in motor spindle (85mm) with water cooling
- Gear-box driven big bore spindle of 110mm for high torque applications
- Dynamic servo-turret with adjustable tool change speed by feed override
- Capable for chucks up to 500mm
- Available with Y-axis or subspindle
and is usually used for highly demanding workpieces from bar material or in chucking applications.
Imperial
| Machining Length | 59.06" |
| Chuck Size | 19.69" |
| Bar Capacity | 3.35" |
| Turning Dia | 17.72" |
| Dimensions | 4700 x 1980 x 2115 mm |
| Weight | 7500 Kg |
