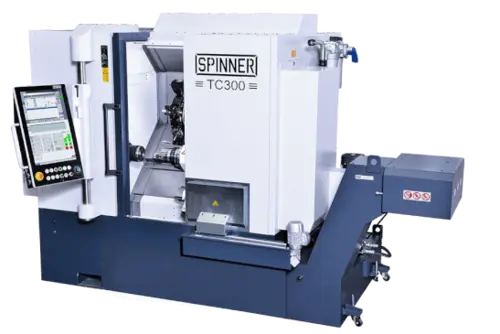

New SPINNER TC 300-65 | CNC Lathes
ConditionNew
New
Our TC300 is a most compact universal lathe with
- Box-way sliding guideways for useful for hard-turning applications and long lifetime of tools
- Most modern and dynamic built-in motor spindle with water cooling
- Dynamic servo-turret with adjustable tool change speed by feed override
- Very compact design with minimized outside dimensions
- Available optionally with Y-axis and subspindle
and is usually used for highly demanding workpieces from bar material or in chucking applications.
Our TC300 is a most compact universal lathe with
- Box-way sliding guideways for useful for hard-turning applications and long lifetime of tools
- Most modern and dynamic built-in motor spindle with water cooling
- Dynamic servo-turret with adjustable tool change speed by feed override
- Very compact design with minimized outside dimensions
- Available optionally with Y-axis and subspindle
and is usually used for highly demanding workpieces from bar material or in chucking applications.
Imperial
| Swing | 11.81" |
| Machining Length | 19.69" |
| # Axis | 2 |
| Chuck Size | 8.27" |
| Power | 36.2 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 9.84" |
| Tailstock | Yes |
| Dimensions | 2L x 1.5W x 1.8H m |
| Weight | 3700 (KGS) |
