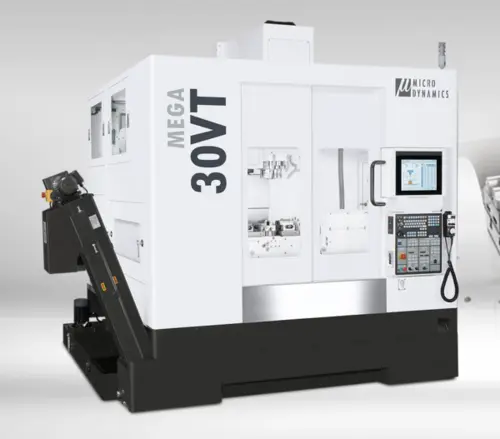

MICRO DYNAMICS MEGA 30VT

 Powerful Mitsubishi M830 windows-based CNC Control
 Heavily ribbed, FC300 Cast Iron Structure, Meehanite processed, FEA Analyzed
 High Torque Integral Spindle Motor from ATE is rated at 41 HP and delivers 104 Ft-Lbs of torque
 Advanced 15,000 RPM Spindle couple with the Integral Motor for faster machining speeds
 1.5 Sec Spindle Acceleration to 12,000 rpm for less Idle Time
 Spindle Oil Cooler
 DYPEC Thermal Compensation system to maintain accuracy from the effects of thermal growth
 Large Size 30mm (X) and 35mm (Y, Z) Cross Roller Linear Rails for extra stiffening
 Large Diameter Ballscrews 32mm X, 40mm Y and Z axis
 High Horsepower Servos generating 3,942 lbs Thrust X, Y and 7,548 Lbs in Z for Higher Metal
Removal Rates
 High rapid rates of 2,047 X, Y and 1,889 Z rival most other Vertical Machining Centers
 SSS Gen 4 High Speed Super Smooth Surface for Mold and Die
 2,700 Block Look Ahead

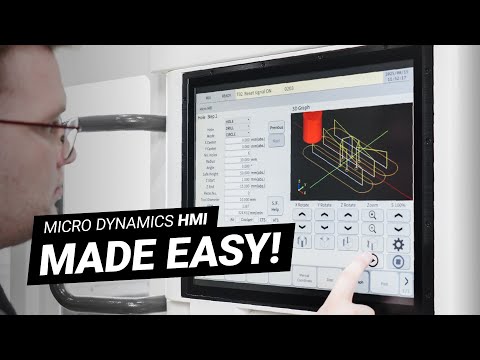

 15” Touchscreen display with built in “Operator Convenience” HMI
 DYCON on board simple conversational programming
 Compact Floor Space 119” (including chip Conveyor) x 90” depth
 40 Station High Speed Automatic Tool Changer
 Fully Enclosed Splash Guards
 Chip Management System with Scraper Type Chip Conveyor and Wash Down
 Flood Coolant and Tool Tip Air Blow
 Coolant Thru Spindle Capable
 15,000 RPM with 41 HP Integral Spindle capable of achieving 104 FT-Lbs of torque
 Built in Integrated Automation setup using Ethernet/IP
 Rigid Tapping to 6,000 RPM
 DYPEC Thermal Compensation
 20 GB Of Data Server Memory
 2MB Main Memory ** (Capable of running on CF Card 64GB)
 Multi Axis CRT/Operator Panel for better Ergonomics
 Collision Protection Detection
 Renishaw GUI Interface
