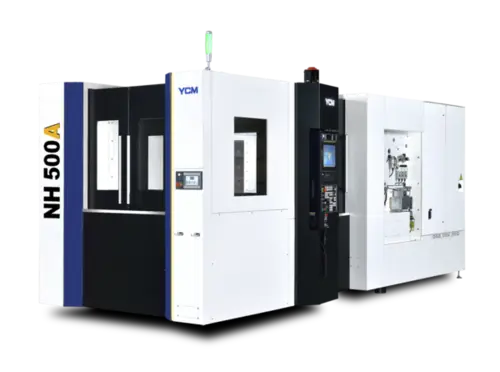

YCM NH500A Horizontal Machining Center
ConditionNew
New
Explore the new YCM NH500A Horizontal Machining Center. Powerful 49.6 hp, 15,000 RPM, and a robust 60-tool ATC for efficient production. Precision meets innovation in modern manufacturing.
The NH Series is a high-production 2-pallet HMC. It features the YCM IDD 15,000 rpm spindle for increased productivity. A one-piece T-type base with ribbed construction provides maximum rigidity and thermal stability, while precision large-diameter roller type guideways on all axes enable rapid feedrates up to 60 m/min.
SPINDLE
Spindle Speed (opt.) 15,000 rpm (20,000 rpm)
Spindle Power (opt.) 37 kW (22.5 kW) 50 HP (30HP)
Spindle Taper BBT40
TRAVEL
X -axis Travel 800 mm 31.5"
Y -axis Travel 730 mm 28.74"
Z -axis Travel 800 mm 31.5"
Distance between Spindle
Center and Table Top 50~780 mm 1.96" ~ 30.71"
Distance between Spindle
Nose and Table Center 150~950 mm 5.91" ~ 31.4"
Acceleration (X / Y / Z) 1g / 1g / 1g
TABLE
Table Size 500 mm x 500 mm 19.69" x 19.69"
Max. Load on Table 500 kg 1,100 lb
Table Indexing Angle (opt.) 1° (0.001°)
APC Change Time 9 sec.
GENERAL
Pneumatic Supplier 5.5 kg/cm2 78.2psi
Power Consumption
(Transformer) 65 kVA (80 kVA)
Machine Weight (opt.) 13,490 kg (14,390 kg) 29,740 lb (31,724 lb)
Explore the new YCM NH500A Horizontal Machining Center. Powerful 49.6 hp, 15,000 RPM, and a robust 60-tool ATC for efficient production. Precision meets innovation in modern manufacturing.
The NH Series is a high-production 2-pallet HMC. It features the YCM IDD 15,000 rpm spindle for increased productivity. A one-piece T-type base with ribbed construction provides maximum rigidity and thermal stability, while precision large-diameter roller type guideways on all axes enable rapid feedrates up to 60 m/min.
Imperial
| X | 31.5" |
| Y | 28.74" |
| Z | 31.5" |
| Power | 49.6 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | BBT40 |
| Pallet-W | 19.69" |
| Pallet-L | 19.69" |
| # Axis | 3 |
SPINDLE
Spindle Speed (opt.) 15,000 rpm (20,000 rpm)
Spindle Power (opt.) 37 kW (22.5 kW) 50 HP (30HP)
Spindle Taper BBT40
TRAVEL
X -axis Travel 800 mm 31.5"
Y -axis Travel 730 mm 28.74"
Z -axis Travel 800 mm 31.5"
Distance between Spindle
Center and Table Top 50~780 mm 1.96" ~ 30.71"
Distance between Spindle
Nose and Table Center 150~950 mm 5.91" ~ 31.4"
Acceleration (X / Y / Z) 1g / 1g / 1g
TABLE
Table Size 500 mm x 500 mm 19.69" x 19.69"
Max. Load on Table 500 kg 1,100 lb
Table Indexing Angle (opt.) 1° (0.001°)
APC Change Time 9 sec.
GENERAL
Pneumatic Supplier 5.5 kg/cm2 78.2psi
Power Consumption
(Transformer) 65 kVA (80 kVA)
Machine Weight (opt.) 13,490 kg (14,390 kg) 29,740 lb (31,724 lb)
